Courtesy of a surface owner

Previous - Slide  6 - Next

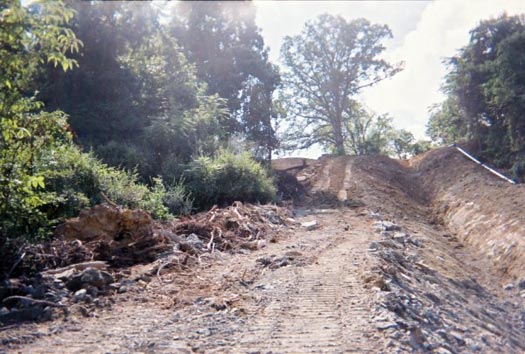

Once the well goes into production, “gathering” pipelines are needed to take the gas from the well to compressor stations.  This photo shows the laying of a gathering line.  In addition, much larger transmission lines (not pictured) are needed take the gas on to market.
